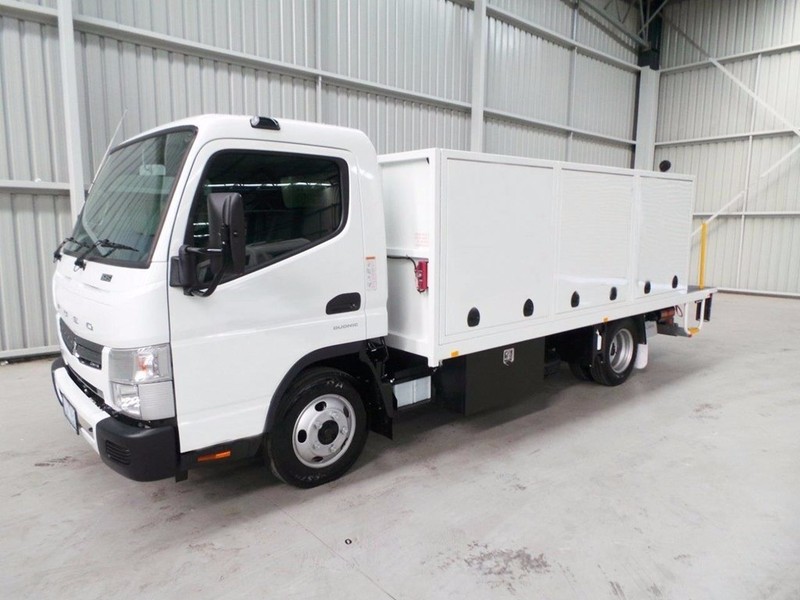

2017 fuso canter 515 wide canter 515 wide truck

2017 FUSO 515 WIDE CAB CANTER.

Fuso Canter 515 Wide Cab.
150hp.
6 Speed AMT.
5 year, 200,000km Warranty.
30,000km Service Intervals.
Bluetooth & Sat Nav.
Independent Front Suspension.
Front & Rear Disc Brakes.
Car Licence

4300mm Overall length
2200mm Overall width
Details: Table Top
Body construction
- All steel construction as per specification - 1200mm high RHS constructed headboard with mesh 500mm from the top in the middle of storage boxes - 75 x 40 x 5mm bearers approximately 450mm centres, - 3mm steel chequer plate floor sheets - Painted Black - Flush floor to RHS combing rails

Storage boxes
- Four (4) only Aluminium storage boxes 1200mm long x 1200mm high x 600mm deep with three (3) adjustable shelves , gas strut assisted lift up lids and drop 'T' latch locks fitted to each side of tray at the front against the headboard -- painted white - One (1) only Aluminium storage box 1200mm high x 1200mm long x 600mm deep with gas strut assisted lift up lids and 'T' latch locks drivers side centre box to be installed with fixed shelves and a left hand compartment for Toolbox storage, etc. (As per drawing) - painted white - One (1) only Aluminium storage box 1200mm high x 1200mm long x 600mm deep with gas strut assisted lift up lids and drop 'T' latch locks fitted to the rear of the driver's side of body with fixed partition panels to the base and five (5) hooks mounted to the rear and side walls for hanging electrical leads, etc. ( refer to drawing) - painted white - Removable style hinged latched gate at the rear of the storage boxes with spring bolt latch

Accessories
- Eight (8) only recessed lashing rings in the floor to restrain loads - locations to be determined - 23 litre water tank with soap dispenser under floor mounted - 900mm long x 450mm high x 450mm deep Toolbox with 'T' lock under floor mounted - 600mm x 400mm x 400mm Waste Oil filter steel Toolbox with a 75mm high floor base and an elevated mesh floor to carry used oil filters which includes a drainage tap to drain any excess oil from filters - supply decal on lid "Waste Oil Filters"
- 150mm swivel style Vice mounted at the rear of tray on the driver's side - Provide a mount for the spare wheel if we need to move the spare wheel from the original location

Electrical
- LED Lights inside the storage boxes with operating switch inside the Truck cab - Amber revolving lamp fitted to the top of headboard in the middle - Two (2) LED work lamps fitted to the top of storage boxes with internal operating switch - ADR approved LED clearance and marker lamps only fitted to comply with registration requirements (The rear combination lamps supplied with the chassis will be fitted unless otherwise requested and quoted)

Standard inclusions
- Stirrup step on the passenger's side of body where the storage box finishes - supply a fixed and removable grab handle to provide 3 points of contact when climbing - Primed and painted with 2K topcoat - white combings, storage boxes and headboard - All compulsory mudguards, mudflaps, reflectors marker plates, etc. to suit R.T.A requirements - All Westrucks badges and identification stickers are an integral part of the body and will only be removed if asked for and in writing and confirmed before the commencement of the build.

Compressor
- Pilot Air brand KP17 Petrol Air compressor with Honda recoil start GX160 Petrol engine with an Electric key start harness mounted onto the headboard on the passenger side and Battery supplied - Compressor to be bolted to the floor at the headboard between the storage boxes - provide decal above harness stating "Open roller door before starting"
- Retractable style hose reel fitted to the back of storage box on the driver's side with 10mm air hose plumbed to the Air compressor and quick release coupling - Provide an Air outlet at the front of body on the passenger side plumbed from the Compressor with a quick release coupling - Supply a 20 litre metal Jerry can for Petrol and provide a mounting bracket against the back of drivers side front storage box with lock provision - Aluminium roller shutter with 'T' handle lock between the storage boxes at the front to protect and secure the compressor and Petrol Jerry can - painted White

TOTAL PRICE INCLUDING GST
Options:
- Supply 45 only new plastic storage boxes 424mm x 203mm x 100mm each with two (2) dividers for each box
$595.00inc.gst
Tail gate loader
- 600kg capacity Dhollandia Tuck away style Tail gate loader with an Aluminium platform - external tuck away plate - Control box mounted to the passenger's side of body - Hand control pendant with lead supplied that plugs into the Control box $4800.00inc.gst

Supply and fit a 4.5kg capacity dry chemical Fire Extinguisher in bracket mounted inside the storage box on the rear wall of the driver's side of body $400.00inc.gst - Provide an Aluminium storage bay on the back of the Driver's side storage boxes to store an Aluminium step ladder with restraint straps and protective carpet on box wall
$385.00 inc.gst

$89,490 Inc GST.
